RDBF - flat-top skeleton DBF bucket on rods
- For machines of 10–50 t
- Widths 1,000–2,000 mm
- Couplers: S · MS · OQ · M · SW
- We usually reply within 1 working day
- We check the fit before we send the quote
- 12 months warranty on manufacturing defects
- Every offer names the dispatch week
- If a bracket we made is wrong and does not fit your machine, we replace it.
Call +48 503 808 636Message us on WhatsAppPhotos and voice notes are welcome.
Standard
RDBF Skeleton rod DBF bucket
The whole range: Excavator buckets
Compatible interfaces: S · MS · OQ · M · SW
- 10–50 tons
- Carriers: Midi, Large, Heavy

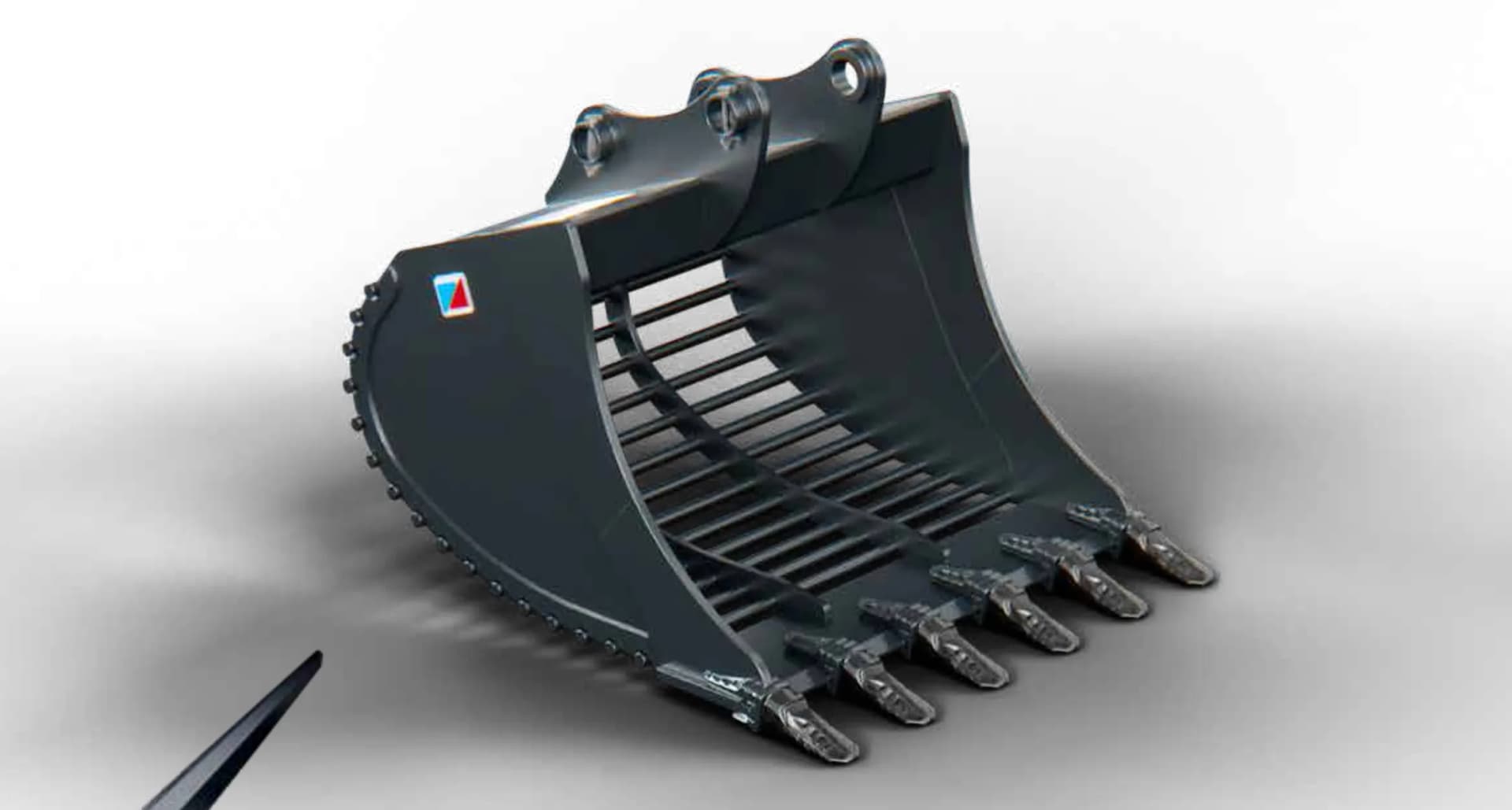

The RDBF is a flat-top skeleton bucket on rods for excavators from 10 to 50 t, built on the DBF bucket. Interlocking steel rods sift soil from rocks while you dig, so the material is sorted in the trench.
About this family
RDBF skeleton bucket: interlocking rods separate the material as you dig, for trenching, drainage and pipe bedding.
The RDBF skeleton bucket is for trenching with a large excavator. Interlocking steel rods sift soil and stones apart while you dig. It is used for utility trenches, drainage systems and pipe bedding.
Seven sizes, RDBF-120 to RDBF-500, come in widths from 1000 to 2000 mm with 5 or 6 teeth. Capacity runs from 536 to 2999 l (SAE) and weight from 271 to 1755 kg. Tip radius is 818 mm on the RDBF-120 and 1377 mm on the RDBF-500.
Rods are C45 steel as standard. Hardox® rods, special Hardox® rods and several rod spacings are options. Teeth are CAT J, BYG Futura or ESCO UltraLok, from J250 to J460. Brackets per size run from S45 to S90, MS10 to MS25, OQ45 to OQ90, M18 and M26, S1 to S3 and SW33 to SW66.
Features
- Interlocking Rods for Separating Material
- HB500 cutting edge for trenching tasks
- Hardox® rods option; C45 rods standard
- Special Hardox® rods available
- Available in Various Rod Spacings
- Available teeth systems: CAT J series, BYG Futura, ESCO UltraLok
- Available brackets: S-System, MS, SW, OQ, EasyLock, Martin, Volvo S and others
Dimensions
Dimensions in mm
Typical jobs
The RDBF rod skeleton bucket for excavators is used for:
- Aggregate sorting in quarrying operations
- Construction waste separation on demolition sites
- Topsoil screening for landscaping
- Recycling operations requiring material segregation
- General excavation with integrated sorting capabilities
- Trenching projects of all kinds (utilities, drainage, foundations)
- Pipe bedding and backfilling in trenches
- Sorting out and removing debris during trenching
- Landscaping work where stones and roots are sifted out of the soil
- Trenching where the spoil is sorted in the bucket
The RDBF skeleton bucket is made for trenching work. Tell us the material and we confirm the rod spacing.
Which coupler is on your machine?
Pick the system on your machine and we put it in your enquiry. We check the bracket before we send the quote.
How to measure your coupler
Not sure which system it is? Three measurements tell us which bracket you need.
- Measure the diameter of both pins.
- Measure the distance between the pin centres.
- Measure the width between the inside faces of the ears.
If the coupler has a make or type printed on it, send that too.
- Loading machines…
Models and specifications
Figures as printed on this family’s datasheet. A dash means the datasheet does not state that figure.
Datasheet (PDF)- Which bracket does your machine take? See the coupler fit reference
- Looking for your machine by make and model? See the machine fit tables
Column heads: model and Machine class [t] · each cell: Capacity SAE [dm³] / Weight [kg]
| Width [mm] | RDBF-12010–12 | RDBF-16012–16 | RDBF-19016–19 | RDBF-23019–23 | RDBF-30023–30 | RDBF-40030–40 | RDBF-50040–50 |
|---|---|---|---|---|---|---|---|
| 1000 | 536 / 271 | 615 / 402 | – | – | – | – | – |
| 1200 | 673 / 308 | 773 / 456 | 911 / 563 | – | – | – | – |
| 1300 | – | – | 1003 / 597 | 1092 / 657 | – | – | – |
| 1400 | – | – | 1100 / 630 | 1199 / 693 | 1306 / 837 | – | – |
| 1500 | – | – | – | 1308 / 730 | 1427 / 880 | 1727 / 1067 | – |
| 1600 | – | – | – | – | 1550 / 922 | 1875 / 1115 | 2241 / 1511 |
| 1800 | – | – | – | – | – | 2179 / 1213 | 2611 / 1633 |
| 2000 | – | – | – | – | – | – | 2999 / 1755 |
| Get a price | Get a price | Get a price | Get a price | Get a price | Get a price | Get a price | |
| Height [mm] | 816 | 877 | 962 | 1022 | 1100 | 1220 | 1375 |
| Length [mm] | 1078 | 1159 | 1274 | 1350 | 1447 | 1600 | 1803 |
| Tip radius [mm] | 818 | 877 | 960 | 1020 | 1099 | 1225 | 1377 |
| Tooth systems | J250, V19, U20 | J300, V29, U30 | J300, V29, U30 | J300, V29, U30 | J350, V33, U35 | J350, V33, U35 | J460, V51, U55 |
| Quick coupler brackets | S45 · S50 · MS10 · OQ45 · OQ60 · M18 | S60 · MS10 · OQ60 · OQ65 · M18 · S1 · SW33 | S60 · MS10 · OQ65 · M26 · S1 · SW33 | S70 · MS21 · OQ65 · OQ70 · M26 · S2 · SW33 | S70 · MS21 · OQ70 · OQ70-55 · S2 · SW48 | S80 · MS25 · OQ80 · S3 · SW48 | S90 · OQ90 · SW66 |
→ Scroll the table sideways to see every model.
Compliance, certification & documentation
- EN ISO 3834-2Certified welding qualityCSW/1293/2025
- EN 1090-1 EXC1 + EXC2Factory production control1433-CPR-0257
- EN ISO 9606-1 · WPQR EN ISO 15614Qualified welders and procedures
- EN ISO 9712: VT + PT level 2Non-destructive testingwhere the drawing or inspection plan requires it
- EN 10204 3.1Material traceability
- CE: 2006/42/ECCE markingTransition to Regulation (EU) 2023/1230 underway. Applicable from 20 January 2027.
- Materials
- Standard: Rods: C45
- Options: Rods: Hardox®
Warranty
12 months warranty on manufacturing defects in the components Sieruta makes itself.
Normal wear, misuse or overloading and unauthorised modifications are not covered. Warranty terms and claims
Why buy from the factory
- Cutting, machining, welding and painting on one site, our own factory in Poland, EU
- More than 50,000 attachments delivered since 2008
- A record for every serial number, so the spare parts match your attachment
Request a quote
Tell us your machine and the job. An engineer checks the fit, and we usually reply within 1 working day.
