Tools · Asphalt cutters
AC mini - asphalt cutter for mini-excavator
Standard
ACS Symmetrical asphalt cutter
Compatible interfaces: S40 · S45 · S50 · MS03 · MS08 · CW05 · CW10 · HS03 · HS06 · HS08 · Klac D · Klac E +3
- 2–12 tons
- On request
- Carriers: Mini, Midi

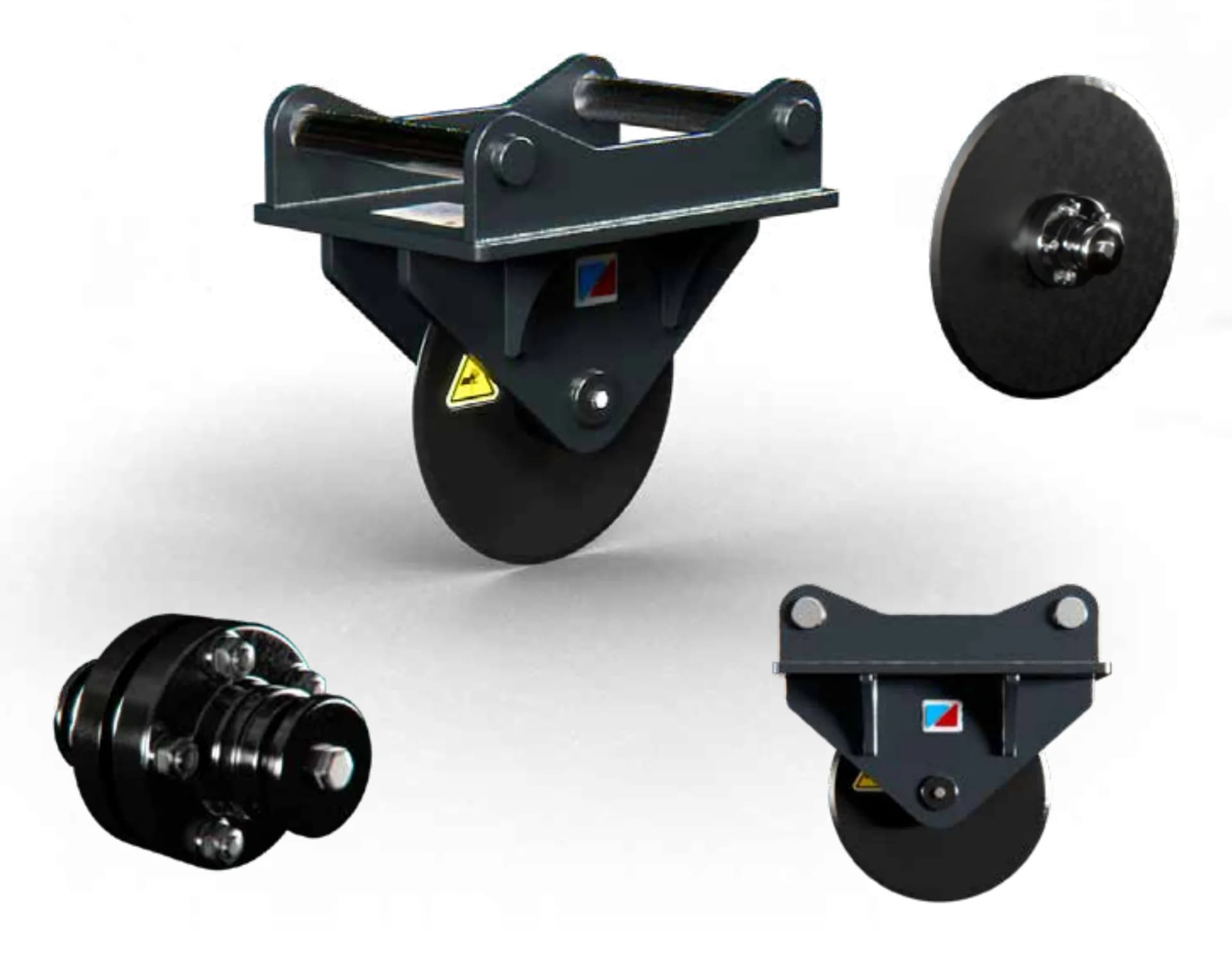

An asphalt cutter for the excavator boom: a hardened steel disc that scores a clean line through asphalt and thin concrete before breaking out. Road repairs and utility trenches start with a straight edge, so the new surface is laid against it.
About this family
Asphalt Cutter for Mini & Midi Excavators It fits a mini or midi excavator and cuts asphalt with a 450 mm steel disc.
AC mini - asphalt cutter symmetrical & asymmetrical models Two versions: the ACS symmetrical asphalt cutter and the ACA asymmetrical asphalt cutter.
Available in symmetrical and asymmetrical disc configurations.
Features
ACA base features:
- 450 mm Hardox® cutting disc for clean cuts
- Cutting depth set by the disc size
- Exchangeable bushings and disc
- Cut-out for the disc in the top of the bracket plate, which lowers the build height
- Steel construction
ACA optional features:
- Custom disc size
Dimensions
Dimensions in mm
Typical jobs
The Asphalt Cutter for Mini & Midi Excavators is used for:
- Road repair and maintenance (mini & midi excavators fit in tight spaces)
- Utility trenching in asphalt surfaces
- Sidewalk and curb cutting applications
- Precise asphalt removal for landscaping or construction projects on smaller sites
- Any job that needs a clean cut through asphalt, suited for the reach and power of mini & midi excavators
Models and specifications
Figures as printed on this family’s datasheet. A dash means the datasheet does not state that figure.
Datasheet (PDF)| Model | Machine class [t] | Height [mm] | Disc diameter [mm] | Cutting depth [mm] | Quick coupler brackets | Weight [kg] |
|---|---|---|---|---|---|---|
| AC-6 | 2.0–6.0 | 459 | 450 | 150 | S40 · MS03 · M03 · M10 · HS03 · HS06 · CW05 · CW10 · Klac D · E | 43 |
| AC-10 | 6.0–12 | 462 | 450 | 150 | S40/240 · S45 · S50 · MS08 · M10 · HS06 · HS08 · CW10 · Klac F | 67 |
→ Scroll the table sideways to see every model.
Compliance, certification & documentation
- EN ISO 3834-2Certified welding qualityCSW/1293/2025
- EN 1090-1 EXC1 + EXC2Factory production control1433-CPR-0257
- EN ISO 9606-1 · WPQR EN ISO 15614Qualified welders and procedures
- EN ISO 9712: VT + PT level 2Non-destructive testingwhere the drawing or inspection plan requires it
- EN 10204 3.1Material traceability
- CE: 2006/42/ECCE markingTransition to Regulation (EU) 2023/1230 underway. Applicable from 20 January 2027.
- Materials
- Standard: Cutting disc: Hardox®
Warranty
Sieruta covers manufacturing defects in the components it makes itself.
Normal wear, misuse or overloading and unauthorised modifications are not covered. Warranty terms and claims
