Attachments for the Volvo EC180E weight range
- Bucket line
- DB - heavy duty digging bucket600–1500 mm wide
- We usually reply within 1 working day
- We check the fit before we send the quote
- Every offer names the dispatch week
- If a bracket we made is wrong and does not fit your machine, we replace it.
Catalogue sizes for the EC180E
Each size below has a catalogue row rated for a carrier of 17,330 – 19,830 kg operating weight. Tell us which sizes you want and we reply with an offer.
On a narrow screen the table scrolls sideways.
| Attachment | Sizes | Capacity [dm³] | Width [mm] | Weight [kg] |
|---|---|---|---|---|
| DB - heavy duty digging bucket | DB-190 · 5 width variants, DB-230 · 6 width variants | 374–1,335 SAE | 600–1,500 | 350–787 |
| SDB - heavy duty skeleton DB bucket | SDB-230 · 2 width variants | 1,183–1,290 SAE | 1,400–1,500 | 833–880 |
| DBF - flat-top digging bucket for quick coupler | DBF-190 · 5 width variants, DBF-230 · 6 width variants | 376–1,308 SAE | 600–1,500 | 346–789 |
| RDBF - flat-top skeleton DBF bucket on rods | RDBF-190 · 3 width variants, RDBF-230 · 3 width variants | 911–1,308 SAE | 1,200–1,500 | 563–730 |
| DSX - Nordic heavy duty digging bucket | DS-HD-190 · 3 width variants, DS-HD-250 · 3 width variants | 570–1,070 SAE | 800–1,200 | 505–847 |
| GD - rigid grading & ditching bucket, 12–40 t | GD-190 · 3 width variants, GD-230 · 3 width variants | 544–819 SAE | 1,600–2,000 | 325–441 |
| GDH - heavy duty hydraulic grading & ditching bucket | GDH-190 · 3 width variants, GDH-230 · 3 width variants | 530–867 SAE | 1,600–2,000 | 572–700 |
| SB - Dutch profile grading & ditching bucket | SB-190 · 4 width variants, SB-230 · 4 width variants | 731–1,176 SAE | 1,600–2,200 | 394–622 |
| DCB - grading & ditching bucket with round profile | DCB-190 · 3 width variants, DCB-230 · 3 width variants | 535–779 SAE | 1,600–2,000 | 298–384 |
| PS - Scandinavian universal / grading bucket | PS-190 · 4 width variants, PS-230 · 4 width variants | 937–1,570 SAE | 1,800–2,200 | 560–834 |
| PSH - hydraulic swivelling grading bucket | PS-190 · 4 width variants, PS-230 · 4 width variants | 1,800–2,200 | ||
| CB - heavy duty hydraulic clamp bucket | CBR-190, CBR-260 | 803–1,071 | 1,200 | 631–1,100 |
| TH - hydraulic thumb for excavator | TH-19, TH-26 | 700–780 | 340–520 | |
| AC - excavator asphalt cutters | AC-18, AC-30 | 99–165 | ||
| MR - heavy duty excavator multi-ripper | MR-22 | 1,300 | 546 | |
| RIP - heavy duty ripper | Ripper-C, Ripper-D | 280–403 | ||
| DuoRIP - double ripper for root extraction | Duo-Ripper-18, Duo-Ripper-30 | 450–500 | 380–565 | |
| GRB - excavator grading beam | GRB midi · 6 variants, GRB maxi · 6 variants | 2,000–3,000 | 216–680 | |
| QC-S - S-System Scandinavian quick-coupler | QC-S60, QC-S70, QC-U-S60, QC-U-S70 | 115–270 | ||
| CW - CW-System compatible quick-coupler | CW-30, CW-30 S, CW-U-30, CW-U-30 S | 220–230 | ||
| QC-HS / QC-MS - MS-System compatible quick-coupler | QC-HS-10, QC-HS-21, QC-MS-10, QC-MS-21, QC-U-HS-10, QC-U-HS-21 | 200–310 | ||
| QC-PG - pin-grabber quick-coupler for factory brackets | QC-PG-70, QC-PG-80, QC-ML-M-60, QC-ML-M-65, QC-ML-M-70, QC-U-PG-70, QC-U-PG-80 | 105–400 |
Welded to EN ISO 3834-2. Agree it as a standing term of supply and the EN 10204 3.1 certificate ships with every attachment. You also get the CE declaration of conformity for every product that carries the CE mark.
Message us on WhatsAppPhotos and voice notes are welcome.For publishers: cite or embed this table
Cite this table as https://sieruta.com/en/fit/volvo/volvo-ec180e, figures as of 2026-09-10.
Embed this table on your site
Copy the HTML below into your page. It keeps the link back to this page and the date of the figures.
Sizes are matched to the published operating weight of the EC180E.
- Weight Class
- Large Excavator (12–30 t)
- Operating Weight
- 17,330 – 19,830 kg
- Family-owned group, founded in 1996
- More than 50,000 attachments delivered
- Built in our own factory in Poland
Operating weight as published by Volvo, retrieved 2026-09-10. Source
Start here
The attachments buyers in your market ask for first, sized for the EC180E.
Which coupler is on your machine?
Pick the system on your machine and we put it in your enquiry. We check the bracket before we send the quote.
How to measure your coupler
Not sure which system it is? Three measurements tell us which bracket you need.
- Measure the diameter of both pins.
- Measure the distance between the pin centres.
- Measure the width between the inside faces of the ears.
If the coupler has a make or type printed on it, send that too.
Send me the spec sheet for my machine
Pick a bucket line and we email you its spec sheet, with the sizes we build for the EC180E.
Send this answer to a colleague or dealer
Volvo EC180E: DBF - flat-top digging bucket for quick coupler (DBF-190, DBF-230)
EC180E at a glance
| Figure | Value | Source |
|---|---|---|
| Max dig depth | 6,070 mm | maker's website (volvoce.com) |
| Max reach | 9,200 mm | maker's document (volvoce.com) |
| Max dump height | 7,480 mm | maker's document (volvoce.com) |
| Arm length | 2,300–3,000 mm | maker's document (volvoce.com) |
| Main pump flow | 304 l/min | maker's document (volvoce.com) |
| Bucket capacity | 0.3–0.96 m³ | maker's document (volvoce.com) |
| Bucket width | 450–1,350 mm | maker's document (volvoce.com) |
| Lift capacity | 5,620 kg | maker's document (volvoce.com) |
| Quick coupler | Volvo hydraulic quick coupler S1, S6 | maker's document (volvoce.com) |
| Transport width | 2,800 mm | maker's document (volvoce.com) |
Only figures the maker publishes for this model. Where a figure is missing, no value is shown.
What the EC180E figures mean for its attachments
- The main pump delivers up to 304 l/min at 343 bar. That is the pump output of the whole machine, not the flow an attachment gets.
- Volvo lists this quick coupler for it: Volvo hydraulic quick coupler S1, S6. The bracket on every attachment has to match the coupler.
- It digs down to 6,070 mm. That is the deepest trench it can open.
- Its maximum reach is 9,200 mm.
- It dumps at up to 7,480 mm, so a truck or skip side has to sit below that height.
- Volvo offers arms from 2,300 to 3,000 mm. A longer arm reaches further, a shorter one handles a heavier bucket.
- Volvo lists buckets from 450 to 1,350 mm wide for this machine. Compare that with the bucket widths in the table above.Our sizes in that range: DB - heavy duty digging bucket (DB-190, DB-230); DBF - flat-top digging bucket for quick coupler (DBF-190, DBF-230); RDBF - flat-top skeleton DBF bucket on rods (RDBF-190, RDBF-230); DSX - Nordic heavy duty digging bucket (DS-HD-190, DS-HD-250); CB - heavy duty hydraulic clamp bucket (CBR-190, CBR-260)
- Volvo lists bucket capacities from 0.3 to 0.96 m³.
- Volvo gives a lifting capacity of 5,620 kg. Check a heavy grab or hammer, plus its load, against the full load chart.
- Its tail swing radius is 2,550 mm, which matters beside a wall or in a live traffic lane.
- For transport it measures 8,770 x 2,800 x 2,900 mm (length, width, height).
- Engine power is 110 kW.
Figures as published by Volvo in its own documents.
How the EC180E compares with its neighbours
The nearest models by weight, with the difference to the EC180E in parentheses where both makers publish the figure.
| Model | Operating weight | Max dig depth | Main pump flow |
|---|---|---|---|
| EC180E | 17.33 t | 6,070 mm | 304 l/min |
| Volvo EWR150 Electric | 16.6 t (-0.73 t) | 5,230 mm (-840) | 250 l/min (-54) |
| Volvo EW180E | 18.2 t (+0.87 t) | 6,000 mm (-70) | 375 l/min (+71) |
| CASE CX160E | 17.3 t (-0.03 t) | 6,490 mm (+420) | 318 l/min (+14) |
Figures as each maker publishes them. A difference is shown only where both machines have a published value.
EC180E: build years and variants
Build years: 2021–2026
Variants
- EC180EL (2021–2026)
Years and variants as listed in the LECTURA Specs database.
EC180E: what the brochure names
Features Volvo names in its own brochure for the EC180E. Some of them may be optional, so check the machine's spec before you order.
- An engine that meets EU Stage V.
- Work modes you select from the cab.
- A rear or side view camera.
- Operator protection certified to ROPS and FOPS.
From Volvo's published brochure. We keep the source document on file.
Questions about the EC180E
- What bucket width fits the EC180E?
- Volvo lists buckets from 450 to 1,350 mm wide for it. Pick a width in that range from the sizes above.
- Which quick coupler is installed on your EC180E?
- Volvo lists this coupler for it: Volvo hydraulic quick coupler S1, S6. Order attachments with the matching bracket.
Each family shows its candidate models by operating-weight range.
Digging & sorting buckets

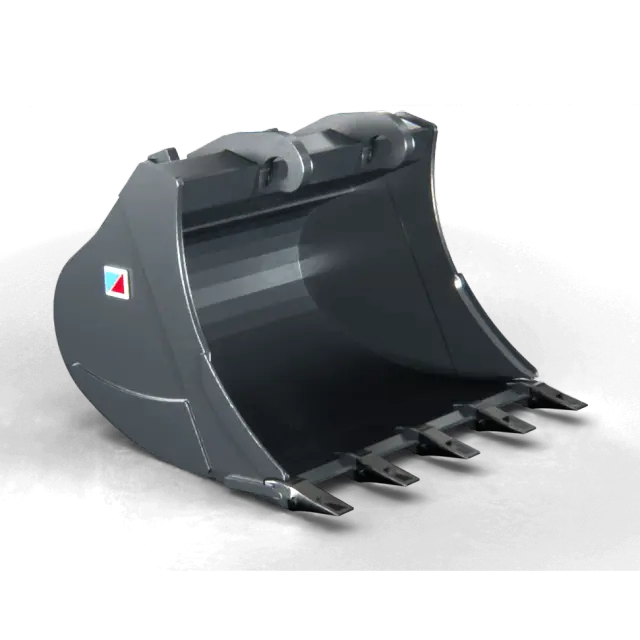

- DB - heavy duty digging bucket
DB-190 · 5 width variants, DB-230 · 6 width variants

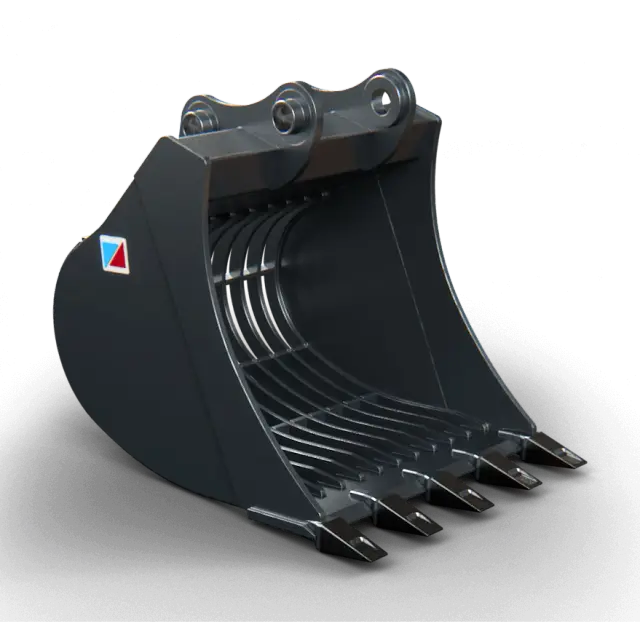

- SDB - heavy duty skeleton DB bucket
SDB-230 · 2 width variants

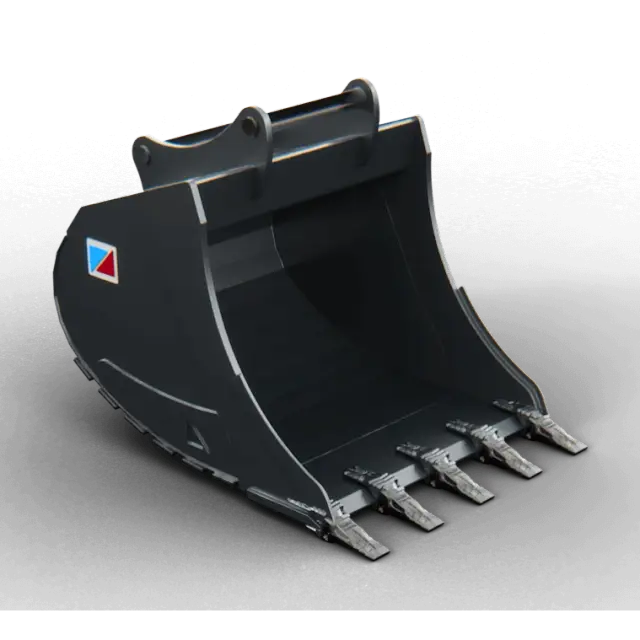

- DBF - flat-top digging bucket for quick coupler
DBF-190 · 5 width variants, DBF-230 · 6 width variants

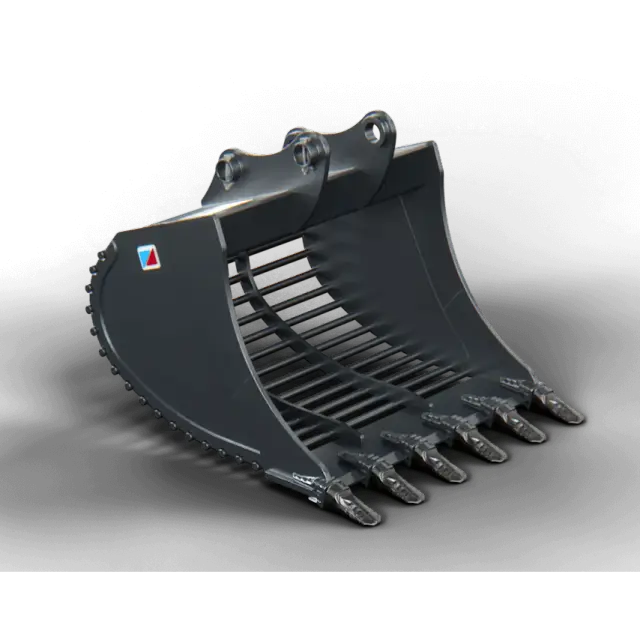

- RDBF - flat-top skeleton DBF bucket on rods
RDBF-190 · 3 width variants, RDBF-230 · 3 width variants

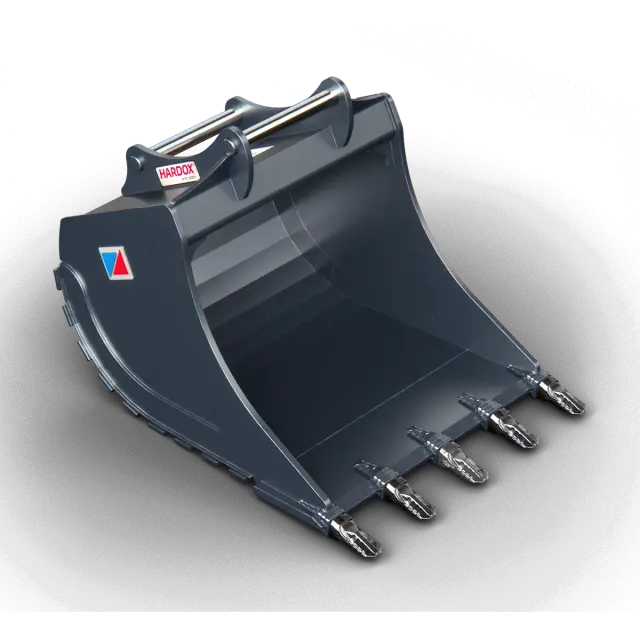

- DSX - Nordic heavy duty digging bucket
DS-HD-190 · 3 width variants, DS-HD-250 · 3 width variants
Ditching, grading, sloping buckets

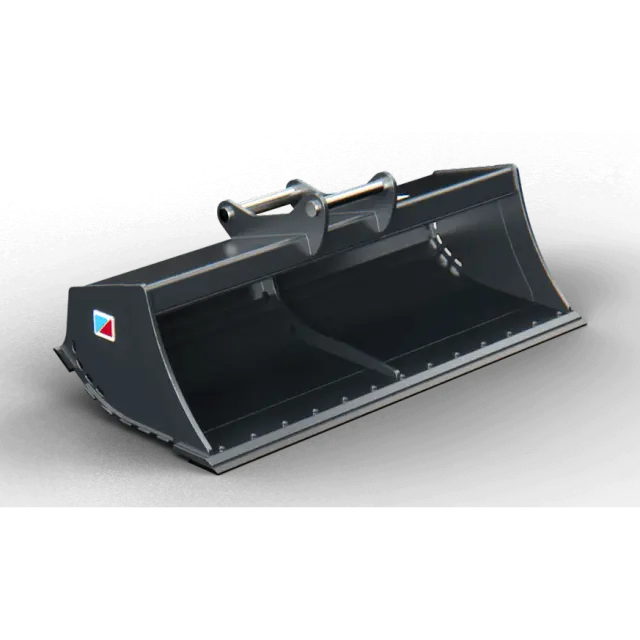

- GD - rigid grading & ditching bucket, 12–40 t
GD-190 · 3 width variants, GD-230 · 3 width variants

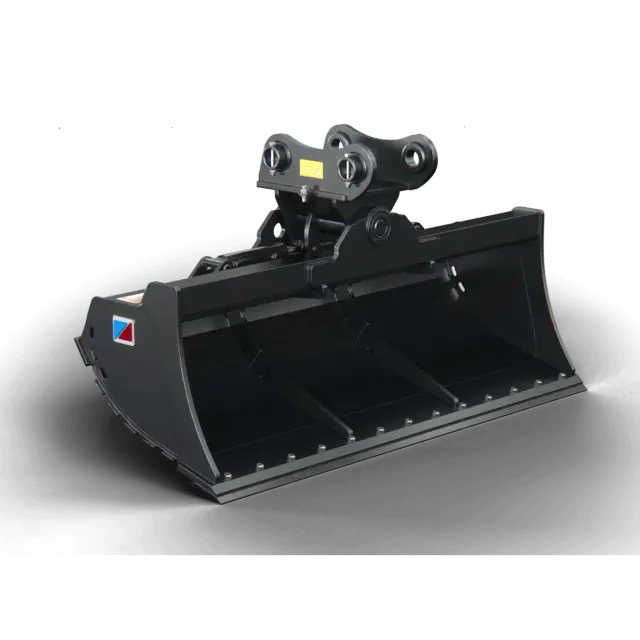

- GDH - heavy duty hydraulic grading & ditching bucket
GDH-190 · 3 width variants, GDH-230 · 3 width variants

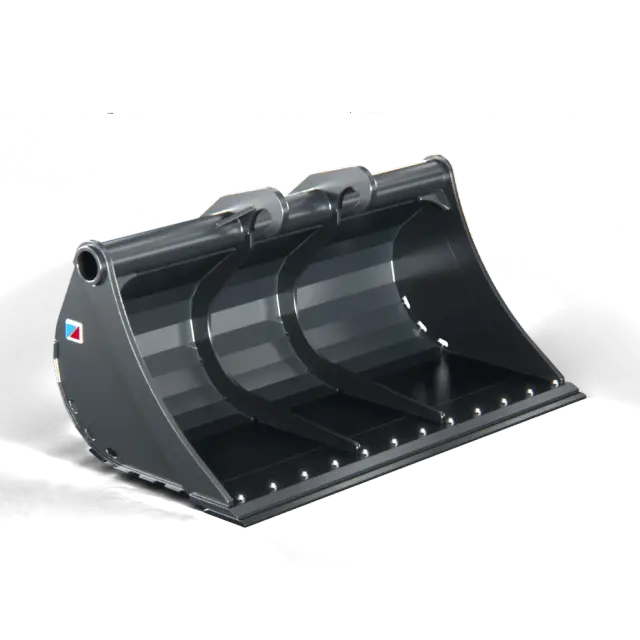

- SB - Dutch profile grading & ditching bucket
SB-190 · 4 width variants, SB-230 · 4 width variants

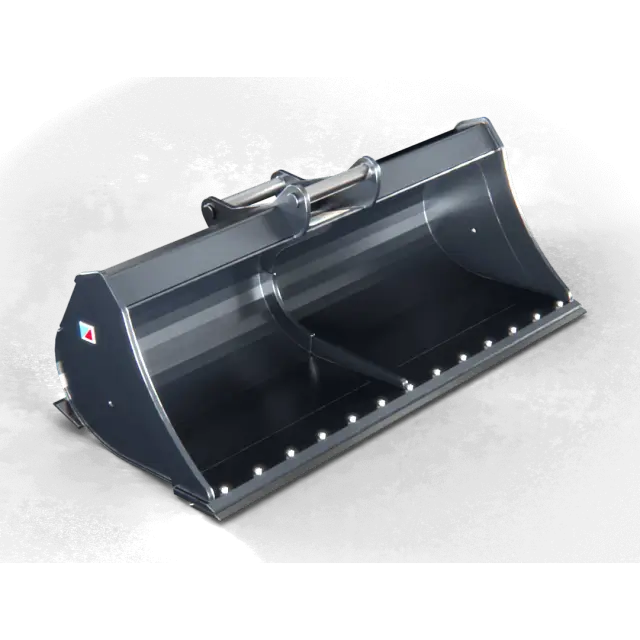

- DCB - grading & ditching bucket with round profile
DCB-190 · 3 width variants, DCB-230 · 3 width variants

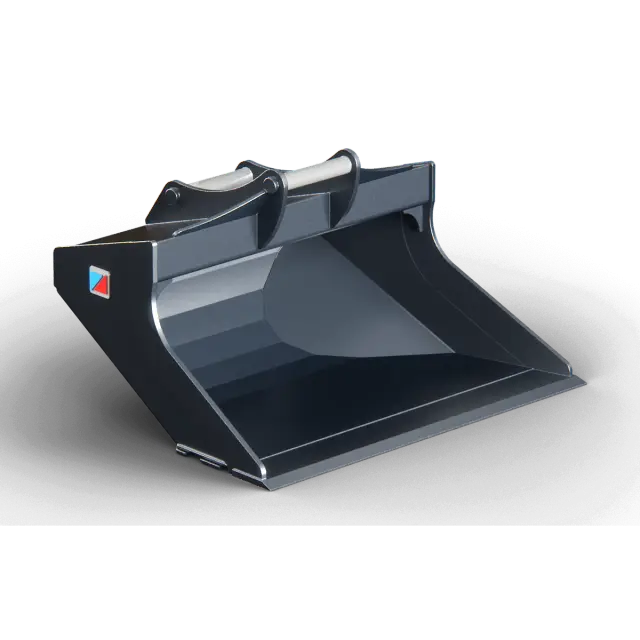

- PS - Scandinavian universal / grading bucket
PS-190 · 4 width variants, PS-230 · 4 width variants

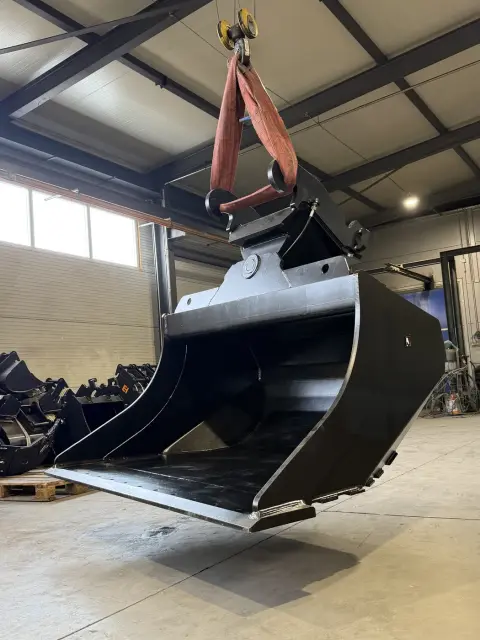

- PSH - hydraulic swivelling grading bucket
PS-190 · 4 width variants, PS-230 · 4 width variants
Special use buckets

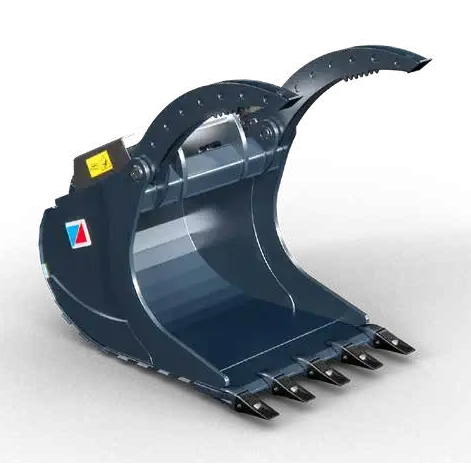

- CB - heavy duty hydraulic clamp bucket
CBR-190, CBR-260
Non-bucket attachments

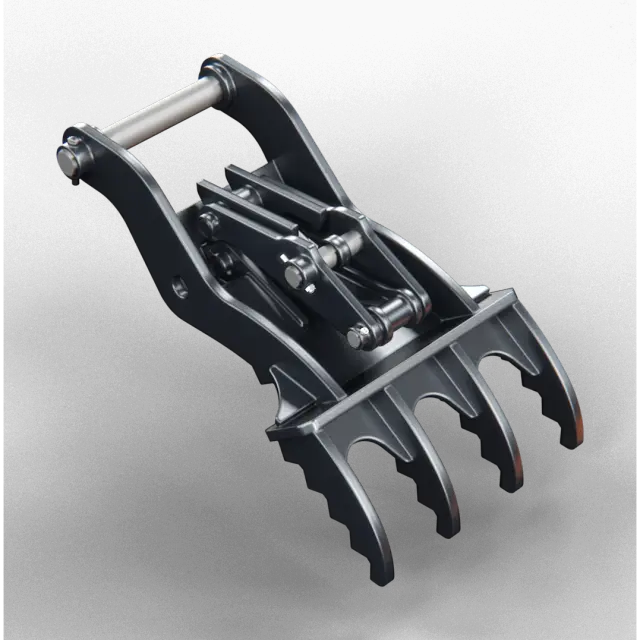

- TH - hydraulic thumb for excavator
TH-19, TH-26

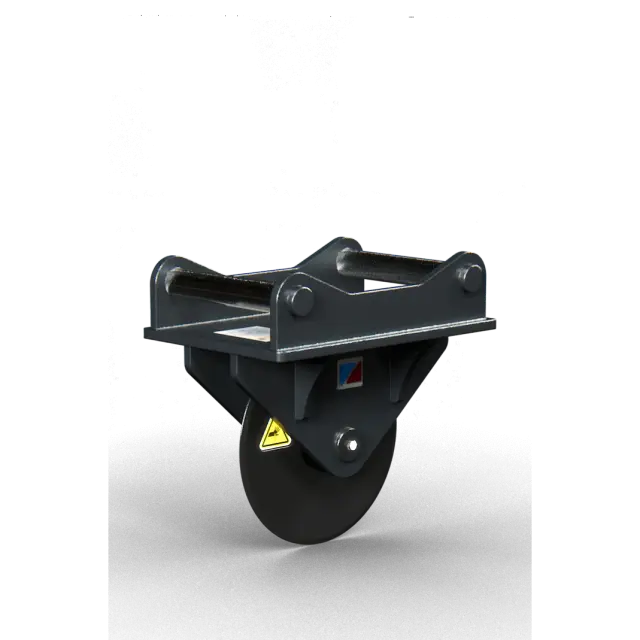

- AC - excavator asphalt cutters
AC-18, AC-30

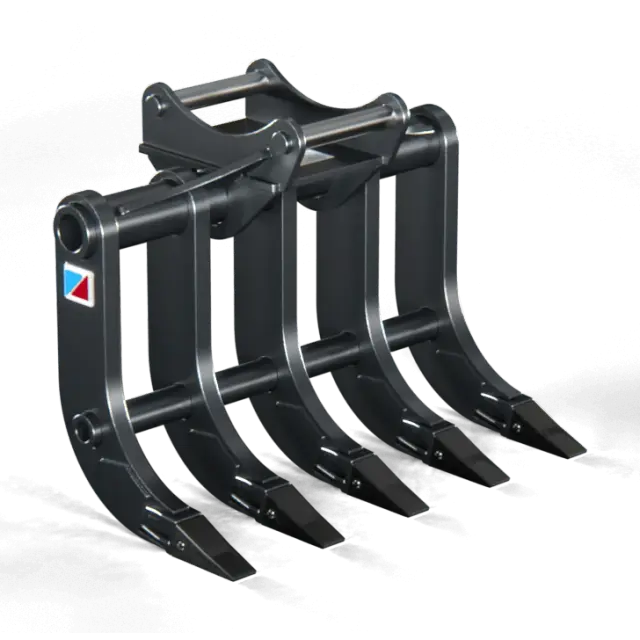

- MR - heavy duty excavator multi-ripper
MR-22

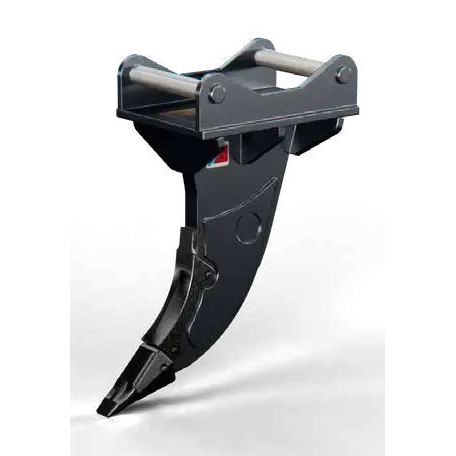

- RIP - heavy duty ripper
Ripper-C, Ripper-D

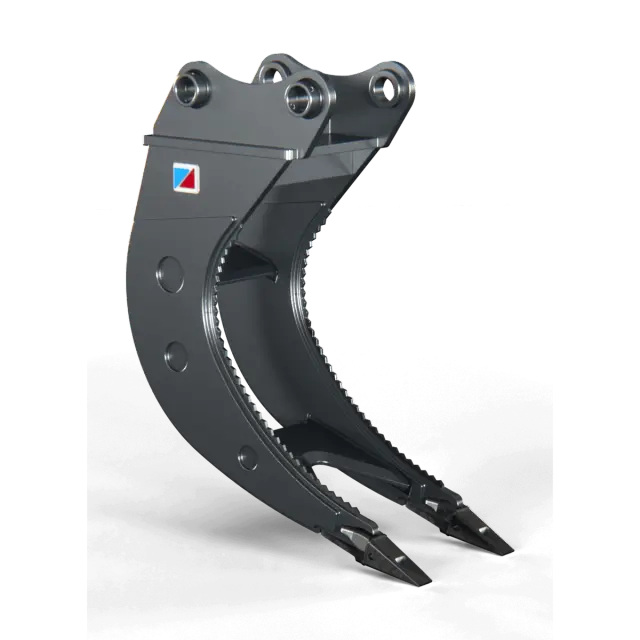

- DuoRIP - double ripper for root extraction
Duo-Ripper-18, Duo-Ripper-30

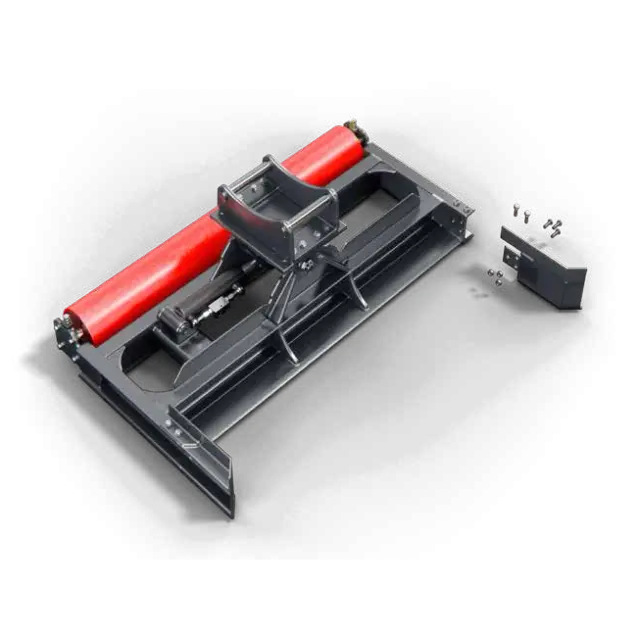

- GRB - excavator grading beam
GRB midi · 6 variants, GRB maxi · 6 variants

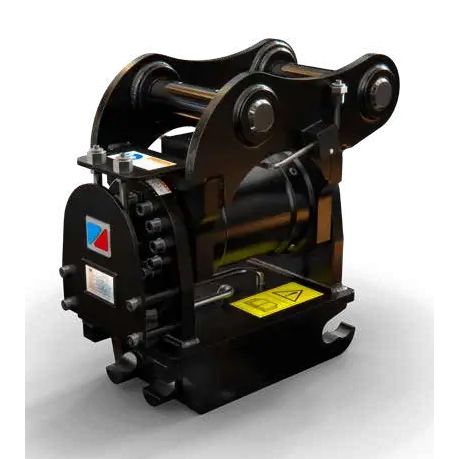

- QC-S - S-System Scandinavian quick-coupler
QC-S60, QC-S70, QC-U-S60, QC-U-S70

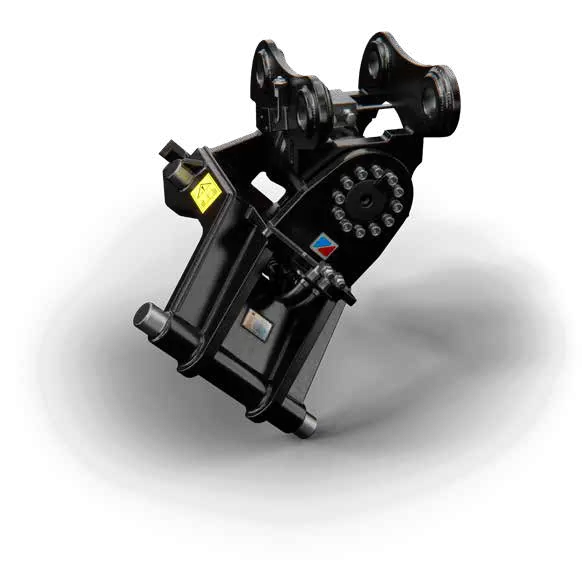

- CW - CW-System compatible quick-coupler
CW-30, CW-30 S, CW-U-30, CW-U-30 S

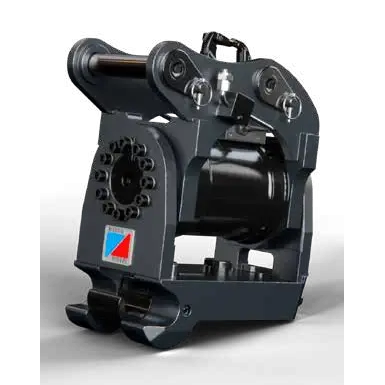

- QC-HS / QC-MS - MS-System compatible quick-coupler
QC-HS-10, QC-HS-21, QC-MS-10, QC-MS-21, QC-U-HS-10, QC-U-HS-21
- QC-PG - pin-grabber quick-coupler for factory brackets
QC-PG-70, QC-PG-80, QC-ML-M-60, QC-ML-M-65, QC-ML-M-70, QC-U-PG-70, QC-U-PG-80
Volvo EC180E: machine data
- Operating weight
- 17,330 – 19,830 kg
- Engine power
- 110 kW
- Maximum digging depth
- 6,070 mm
- Maximum dump height
- 7,480 mm
- Tail swing radius
- 2,550 mm
- Quick coupler
- Volvo hydraulic quick coupler S1, S6
As published by Volvo, retrieved 2026-09-17. Source
Before you order: check the interface
The weight class of the Volvo EC180E sizes the attachment. It does not tell you the pin diameter, the pin spacing or the stick width, and those decide whether an attachment fits. Measure them on the machine, or send us the measurements of the bucket it runs today.
At this weight the choice is mostly about the material. A general purpose bucket suits soil and gravel, a reinforced bucket with thicker wear parts suits mixed ground and broken rock, and the quick coupler on the machine sets the bracket every attachment needs.
Quick coupler brackets at this weight
In our model tables, the attachments listed for the Volvo EC180E at its weight are built with these brackets. Each code opens the models that list it.
- Measure the diameter of both bucket pins.
- Measure the distance between the pin centres.
- Measure the inside width between the stick ears.
- If the machine runs a quick coupler, note its make and type.
What these terms mean:
How to choose an attachment for the job:
Other Volvo models of a similar weight
Other makes of a similar weight
Operating weight within 2 t of the Volvo EC180E.
Other Volvo models with the same coupler brackets
Our model tables give these machines the same quick coupler brackets.
Why buy from the factory
- Cutting, machining, welding and painting on one site, our own factory in Poland, EU
- More than 50,000 attachments delivered since 2008
- A record for every serial number, so the spare parts match your attachment
Need Custom Specifications?
We can manufacture attachments to your exact pin spacing and requirements for Volvo EC180E.
Welded to EN ISO 3834-2. Agree it as a standing term of supply and the EN 10204 3.1 certificate ships with every attachment. You also get the CE declaration of conformity for every product that carries the CE mark.
