Attachments for the Sany SY35E weight range
- Bucket line
- GP - general purpose digging bucket300–400 mm wide
- We usually reply within 1 working day
- We check the fit before we send the quote
- Every offer names the dispatch week
- If a bracket we made is wrong and does not fit your machine, we replace it.
How is the attachment mounted on this machine?
Tell us what is on the machine now. It narrows the sizes we show and goes with your enquiry. It does not confirm fit: we check the bracket before we send the quote.
Catalogue sizes for the SY35E
Each size below has a catalogue row rated for a carrier of 4,300 kg operating weight. Tell us which sizes you want and we reply with an offer.
Each family shows its candidate models by operating-weight range.
The attachments buyers in your market ask for first, sized for the SY35E.
On a narrow screen the table scrolls sideways.
Buckets
Tools
| Attachment | Sizes | Heaped capacity ISO 7451 [dm³] | Width [mm] | Weight [kg] |
|---|---|---|---|---|
Other mini-ex attachments | ||||
| LR mini - straight land rakes for mini-excavator | LR-6 · 2 width variants | 1,000–1,200 | 158–187 | |
| LRS - short land rakes for mini-excavators | LRS-5 | 1,560 | 130 | |
| RIP mini - ripper shank for mini-excavator | Ripper-5.5 | 51 | ||
| MR mini - multi-ripper for mini-excavator | MRF 75 · 2 width variants | 800–1,000 | 117–121 | |
| AC mini - asphalt cutter for mini-excavator | AC-6 | 43 | ||

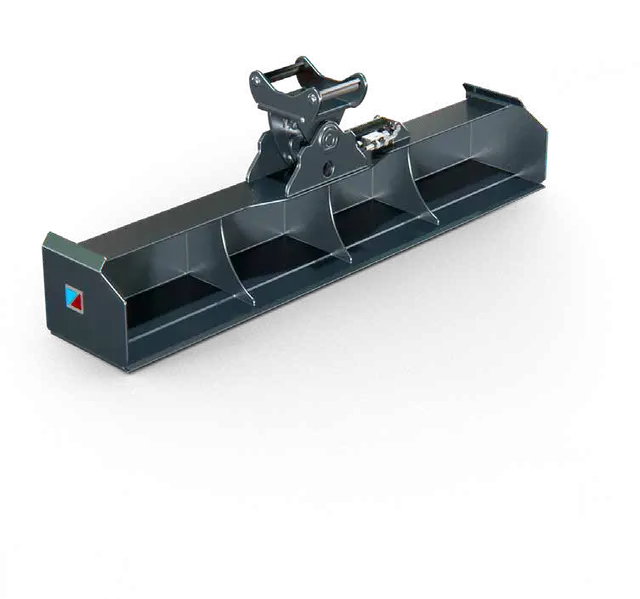

| GRB light - mini-excavator grading beam with lowered mass | GRB-MIKRO · 3 width variants, GRBH-MIKRO · 3 width variants | 1,500–2,000 | 86–141 | |
Non-bucket attachments | ||||
| DuoRIP - double ripper for root extraction | Duo-Ripper-6 | 365 | 102 | |
| GRB - excavator grading beam | GRB-MINI · 4 variants, GRBH-MINI · 2 width variants | 1,000–1,500 | 91–261 | |
Also available | ||||
| RC - root cutter | Root cutter-6 | 200 | 20 | |

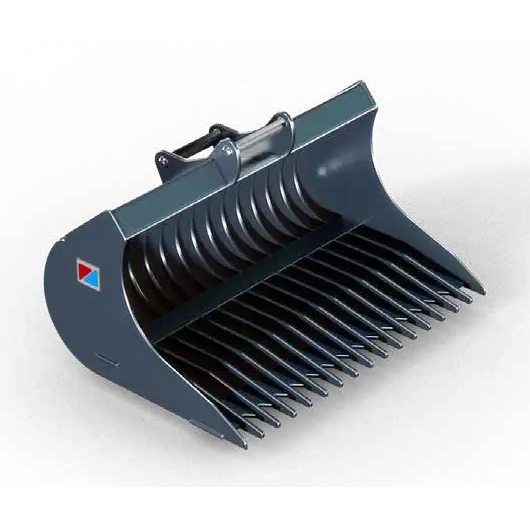

| RRB - root rake bucket profile | RRB-60 | 1,500 | 222 | |
Quick couplers
| Attachment | Sizes | Heaped capacity ISO 7451 [dm³] | Width [mm] | Weight [kg] |
|---|---|---|---|---|
| QC-S - S-System Scandinavian quick-couplerStart herePrice & lead timeGet price & lead timeS-System (Scandinavian) | QC-S40-H, QC-S40-H/240, QC-S40-SA, QC-S40-SA/240, QC-U-S40-H, QC-U-S40-H/240 | 30–92 | ||
| CW - CW-System compatible quick-couplerCW-System | CW-10, CW-U-10 | 65–179 | ||
| QC-HS / QC-MS - MS-System compatible quick-couplerMS system | QC-HS-03, QC-MS-03, QC-U-HS-03 | 30–90 | ||
| QC-PG - pin-grabber quick-coupler for factory bracketsPin-grabber | QC-PG-40, QC-PG-45, QC-ML-M-40, QC-U-PG-40, QC-U-PG-45 | 32–142 |
Welded to EN ISO 3834-2. Agree it as a standing term of supply and the EN 10204 3.1 certificate ships with every attachment. You also get the CE declaration of conformity for every attachment. See the certificates.
Message us on WhatsAppPhotos and voice notes are welcome.Which coupler is on your machine?
Pick the system on your machine and we put it in your enquiry. We check the bracket before we send the quote.
How to measure your coupler
Not sure which system it is? Three measurements tell us which bracket you need.
- Measure the diameter of both pins.
- Measure the distance between the pin centres.
- Measure the width between the inside faces of the ears.
If the coupler has a make or type printed on it, send that too.
Before you order: check the interface
The weight class of the Sany SY35E sizes the attachment. It does not tell you the pin diameter, the pin spacing or the stick width, and those decide whether an attachment fits. Measure them on the machine, or send us the measurements of the bucket it runs today.
On a mini excavator the weight of the attachment counts for more than on a larger machine, because every kilogram of bucket is taken from lift capacity and stability. A narrow trenching bucket and a wide grading bucket are the usual pair, and many machines run a small quick coupler to change between them.
Quick coupler brackets at this weight
In our model tables, the attachments listed for the Sany SY35E at its weight are built with these brackets. Each code opens the models that list it.
- Measure the diameter of both bucket pins.
- Measure the distance between the pin centres.
- Measure the inside width between the stick ears.
- If the machine runs a quick coupler, note its make and type.
What these terms mean:
How to choose an attachment for the job:
Send me the spec sheet for my machine
Pick a bucket line and we email you its spec sheet, with the sizes we build for the SY35E.
Send this answer to a colleague or dealer
Sany SY35E: GP - general purpose digging bucket (GP-60)
Sizes are matched to the published operating weight of the SY35E.
- Weight Class
- Mini Excavator (1–6 t)
- Operating Weight
- 4,300 kg
- Family-owned group, founded in 1996
- More than 50,000 attachments delivered
- Built in our own factory in Poland
Operating weight as published by Sany, retrieved 2026-09-11. Source
Sany SY35E: machine data
- Operating weight
- 4,300 kg
- Engine power
- 18 kW
- Maximum digging depth
- 3,115 mm
- Maximum dump height
- 3,445 mm
- Bucket breakout force
- 26.51 kN
- Arm crowd force
- 19.96 kN
- Max reach
- 5,480 mmmaker's document (sanyeurope.com)
- Arm length
- 1,400 mmmaker's document (sanyeurope.com)
- Main pump flow
- 88 l/minmaker's document (sanyeurope.com)
- Bucket capacity
- 0.12 m³maker's document (sanyeurope.com)
- Transport width
- 1,720 mmmaker's document (sanyeurope.com)
As published by Sany, retrieved 2026-09-17. Source
What the SY35E figures mean for its attachments
- The main pump delivers up to 88 l/min at 240 bar. That is the pump output of the whole machine, not the flow an attachment gets.
- It digs down to 3,115 mm. That is the deepest trench it can open.
- Its maximum reach is 5,480 mm.
- It dumps at up to 3,445 mm, so a truck or skip side has to sit below that height.
- Its arm is 1,400 mm long.
- Sany lists a bucket capacity of 0.12 m³.
- Bucket breakout force is 26.51 kN and arm crowd force 19.96 kN. That is the force a bucket or ripper works with at the tooth.
- For transport it measures 4,920 x 1,720 x 2,615 mm (length, width, height).
- Engine power is 18 kW.
Figures as published by Sany in its own documents.
How the SY35E compares with its neighbours
The nearest models by weight, with the difference to the SY35E in parentheses where both makers publish the figure.
| Model | Operating weight | Max dig depth | Main pump flow |
|---|---|---|---|
| SY35E | 4.3 t | 3,115 mm | 88 l/min |
| Sany SY35C | 3.68 t (-0.62 t) | 3,115 mm | 88 l/min |
| Sany SY50U | 5.3 t (+1 t) | 3,420 mm (+305) | 138.6 l/min (+50.6) |
| Kubota KX042-5 | 4.27 t (-0.03 t) | 3,455 mm (+340) | 110 l/min (+22) |
Figures as each maker publishes them. A difference is shown only where both machines have a published value.
SY35E: what the brochure names
Features Sany names in its own brochure for the SY35E. Some of them may be optional, so check the machine's spec before you order.
- A load-sensing hydraulic system.
- Operator protection certified to ROPS and FOPS.
From Sany's published brochure. We keep the source document on file.
Other Sany models of a similar weight
Other makes of a similar weight
Operating weight within 2 t of the Sany SY35E.
Why buy from the factory
- Cutting, machining, welding and painting on one site, our own factory in Poland, EU
- More than 50,000 attachments delivered since 2008
- A record for every serial number, so the spare parts match your attachment
Need Custom Specifications?
We can manufacture attachments to your exact pin spacing and requirements for Sany SY35E.
Questions about the SY35E
- What bucket size fits the SY35E?
- Sany lists a bucket capacity of 0.12 m³ for it.
